Integrated Touchscreen Terminal
The 7-inch touchscreen combines camera monitoring, AI alerts, vehicle information and system operation in one interface.

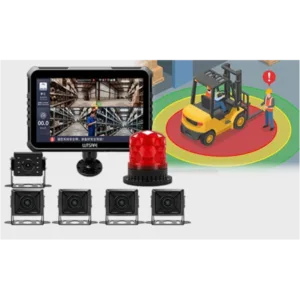

SF-420 Pro 7-Inch AI Forklift Collision Avoidance System
WTSAFE SF-420 Pro is an integrated AI forklift collision avoidance system featuring a 7-inch touchscreen safety terminal. It combines AI pedestrian detection, audible and visual warnings, speed control, active braking, driver monitoring and video recording to help reduce collision risks in pedestrian-intensive workplaces.
✓
Integrated 7-inch touchscreen terminal
Integrated 7-inch touchscreen terminal
✓
AI pedestrian detection and monitoring
AI pedestrian detection and monitoring
✓
Configurable warnings and speed control
Configurable warnings and speed control
✓
Active braking and event recording
Active braking and event recording
Key Features
One integrated safety terminal brings together AI detection, driver alerts, vehicle control and event recording for forklift operations.
AI Pedestrian Detection
AI cameras monitor selected areas around the vehicle and identify pedestrians and other potential hazards within configured detection zones.
Tiered Safety Response
The system can provide audible and visual warnings, speed limitation and active braking according to the configured safety strategy.
Driver Monitoring
A dedicated DMS camera can help identify fatigue, mobile phone use, smoking and other distracted driving behavior.
Video & Event Recording
Important alarm events and operating footage can be recorded for incident review, safety training and analysis.
Fleet Safety Management
Depending on the selected configuration, vehicle, driver and alarm information can be connected to a centralized management platform.
How It Works
The SF-420 Pro uses AI cameras to monitor key areas around the forklift. It analyzes detected targets in real time and determines whether a pedestrian or another potential hazard has entered a configured warning or danger zone.
Detect
AI cameras monitor key areas around the forklift and identify pedestrians or other potential hazards.
Warn
When a target enters a configured warning zone, the system provides audible and visual alerts to the operator.
Intervene & Record
When the risk reaches a configured danger level, the system can activate speed control or braking and record the event for later review.
01AI Detection
02Risk Warning
03Speed Control or Braking
04Event Recording
Applications
Designed for workplaces where forklifts and pedestrians operate in close proximity.
Technical Specifications
Key electrical, environmental and communication specifications for the SF-420 Pro system.
| Operating Voltage | DC 12–96 V |
|---|---|
| Standby Current | ≤1700 mA (DC 12 V) |
| Operating Current | ≤1750 mA (DC 12 V) |
| Average Power | 12 W |
| Audio Format | MP3 (16–20 Kbps) |
| Alarm Sound Level | ≤100 dB |
| Light Intensity | 980 lux |
| Operating Temperature | −20°C to +65°C |
| Protection Rating | IP66 |
| Network | 4G, Wi-Fi |
System Components
The final component configuration should be selected according to the vehicle type, required monitoring coverage and vehicle-control functions.
7-Inch Touchscreen Safety Terminal
Displays camera images, AI warnings, vehicle information and system controls through one interface.
AI Detection Cameras
Monitor selected areas around the vehicle and provide image data for pedestrian and hazard detection.
DMS Camera
Monitors the driver and helps identify fatigue, distraction, smoking and mobile phone use.
Vehicle-Control Components
Allow the system to work with compatible vehicle controls for configured speed limitation or active braking.
Driver Monitoring System (DMS)
A dedicated DMS camera helps identify unsafe driver conditions and behaviors. Combining collision prevention with driver monitoring allows the system to address both surrounding hazards and driver-related safety risks.
Connected Fleet Safety Management
Depending on the selected system configuration, SF-420 Pro safety data can be connected to a centralized management platform.
Available functions may include vehicle positioning, driver management, alarm records, data analysis, video functions and fleet reporting. This allows businesses to extend safety management from an individual forklift to a wider fleet.
Configure the Right SF-420 Pro Solution for Your Forklift
Tell us about your forklift, working environment, required camera coverage and vehicle-control needs. Our team will help you determine a suitable system configuration.
Related Products
Explore other AI collision avoidance and forklift safety solutions.
AI Forklift Collision Prevention System FAQs
Q: What is an AI Forklift Collision Prevention System?
−
−
A: An AI Forklift Collision Prevention System uses AI cameras and intelligent algorithms to detect pedestrians and potential hazards around a forklift and provide warnings or active safety responses to help prevent collisions.
Q: Is the SF-420 Pro an all-in-one forklift safety system?
+
+
A: Yes. The SF-420 Pro integrates AI collision prevention, a 7-inch touchscreen safety terminal, driver monitoring, speed control, active braking, video recording, and fleet management into one system.
Q: Does the SF-420 Pro support active braking?
+
+
A: Yes. The system can work with compatible vehicle control components to provide active braking when a detected hazard reaches a configured danger zone.
Q: How many cameras can the system support?
+
+
A: The SF-420 Pro supports up to four BSD camera inputs and one DMS camera input, allowing multiple areas around the vehicle to be monitored.
Q: Can the system monitor driver behavior?
+
+
A: Yes. The integrated DMS camera can monitor driver behavior and help identify unsafe conditions such as fatigue, phone use, smoking, and distraction.
