Three-Level Speed Warning
Set three speed thresholds to trigger different visual, audible and voice warnings as vehicle speed increases.

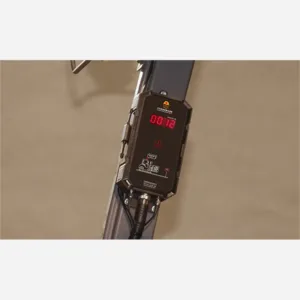

SF-102 Forklift Speed Limiter
WTSAFE SF-102 is a forklift overspeed alarm and speed limiter designed to monitor vehicle speed and reinforce safer driving practices. It combines wireless speed detection, three-level audible and visual warnings, configurable speed thresholds and optional throttle control for electric and fuel-powered forklifts.
✓
Three-level overspeed warning
Three-level overspeed warning
✓
Wireless real-time speed detection
Wireless real-time speed detection
✓
Configurable speed limits and lock mode
Configurable speed limits and lock mode
✓
Optional electronic or mechanical throttle control
Optional electronic or mechanical throttle control
SF-102 Forklift Speed Limiter FAQs
Q: What is the SF-102 Forklift Speed Limiter?
−
−
A: The SF-102 is a forklift overspeed alarm and speed-limiting system designed for forklifts and other industrial vehicles. It monitors vehicle speed through a wireless speed sensor and provides configurable visual, audible, and voice warnings when preset speed thresholds are exceeded.
Q: What happens when a forklift exceeds the preset speed?
+
+

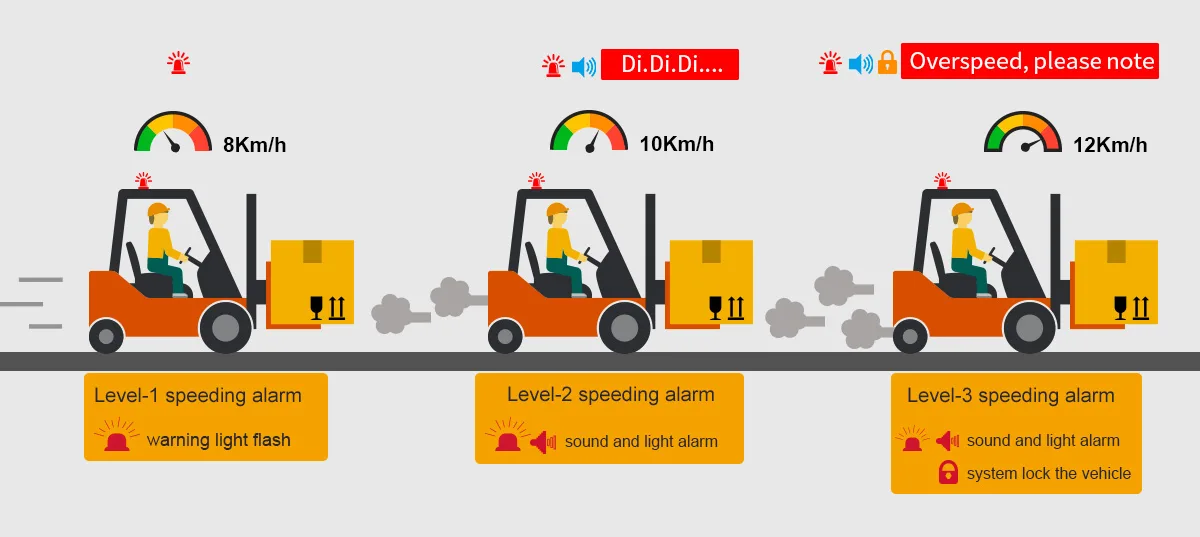

A: The SF-102 provides three configurable warning levels. Depending on the speed level reached, the system can activate a flashing light, an audible alert, or an overspeed voice warning. When compatible throttle-control hardware is installed, the highest warning level can also trigger speed limiting.
Q: Can the three speed-warning thresholds be adjusted?
+
+
A: Yes. Administrators can configure all three warning thresholds according to the vehicle and operating environment. The factory default settings are 8 km/h for Level 1, 10 km/h for Level 2, and 12 km/h for Level 3.
Q: Does the SF-102 automatically limit forklift speed?
+
+
A: Speed limiting is available when the SF-102 is connected to a compatible electronic or mechanical throttle controller. The appropriate controller depends on the forklift’s throttle type and must be selected as part of the system configuration.
Q: What is the difference between speed-limiting mode and lock mode?
+
+
A: In speed-limiting mode, the system works with the throttle controller to restrict vehicle speed when the Level 3 threshold is exceeded. In lock mode, continuous overspeed for the configured period can lock the throttle at idle until an administrator releases it with the remote control.
Q: Is the SF-102 suitable for electric and fuel-powered forklifts?
+
+
A: Yes. The SF-102 supports a wide operating voltage of DC 10–55 V and can be used with electric and fuel-powered forklifts. For active speed limiting, vehicle voltage, throttle type, and controller compatibility should be confirmed before installation.
Q: How does the SF-102 measure forklift speed?
+
+
A: A wireless speed sensor installed on the wheel detects vehicle movement and sends the information to the SF-102 host. The installer enters the correct wheel diameter during setup so the system can calculate and display the vehicle speed accurately.
Q: Can forklift drivers change the speed settings?
+
+
A: The main settings are managed through an infrared remote control rather than buttons on the host. This helps facility managers control access to warning thresholds, wheel calibration, alarm volume, lock time, and speed-control modes.
Q: Does the SF-102 provide a reversing warning?
+
+
A: Yes. The system includes a configurable reversing voice-reminder function that can alert nearby personnel when the forklift is reversing. The reversing reminder can be enabled or disabled through the system settings.

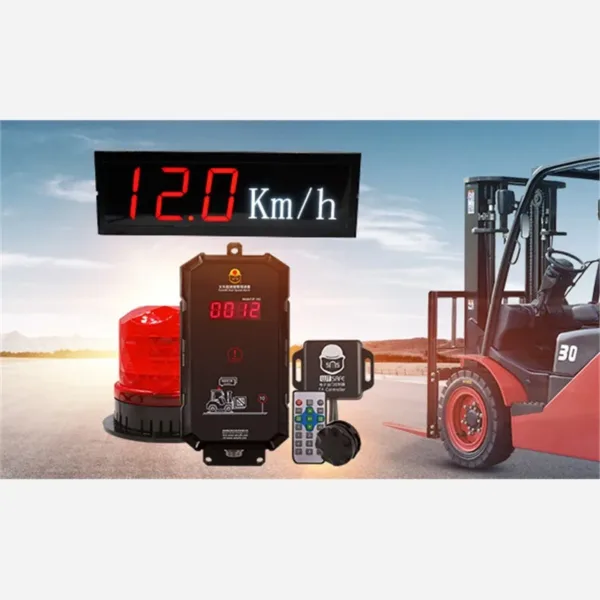

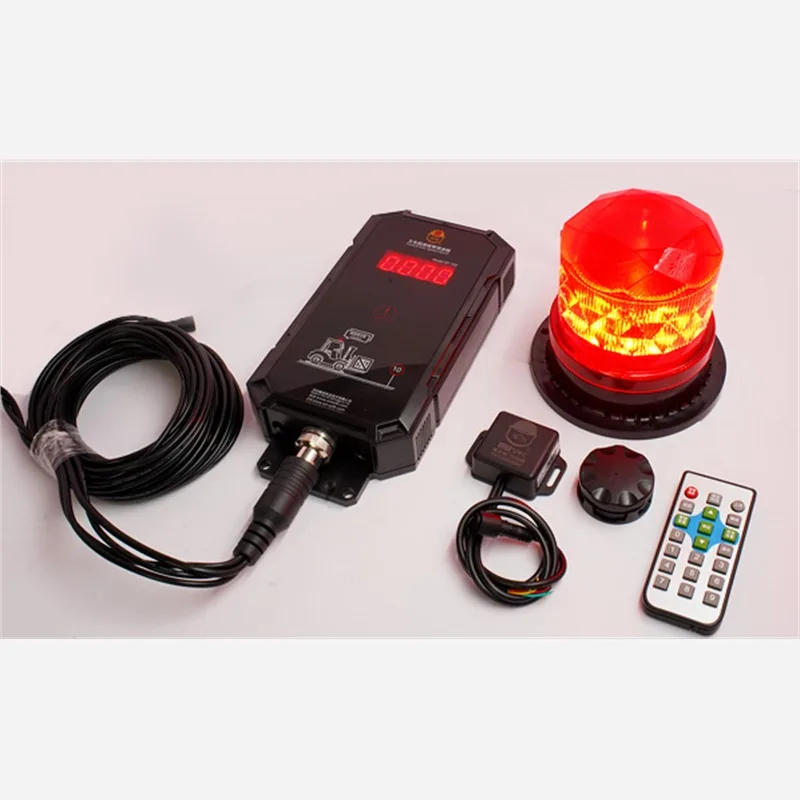

Q: What components are included with the SF-102?
+
+

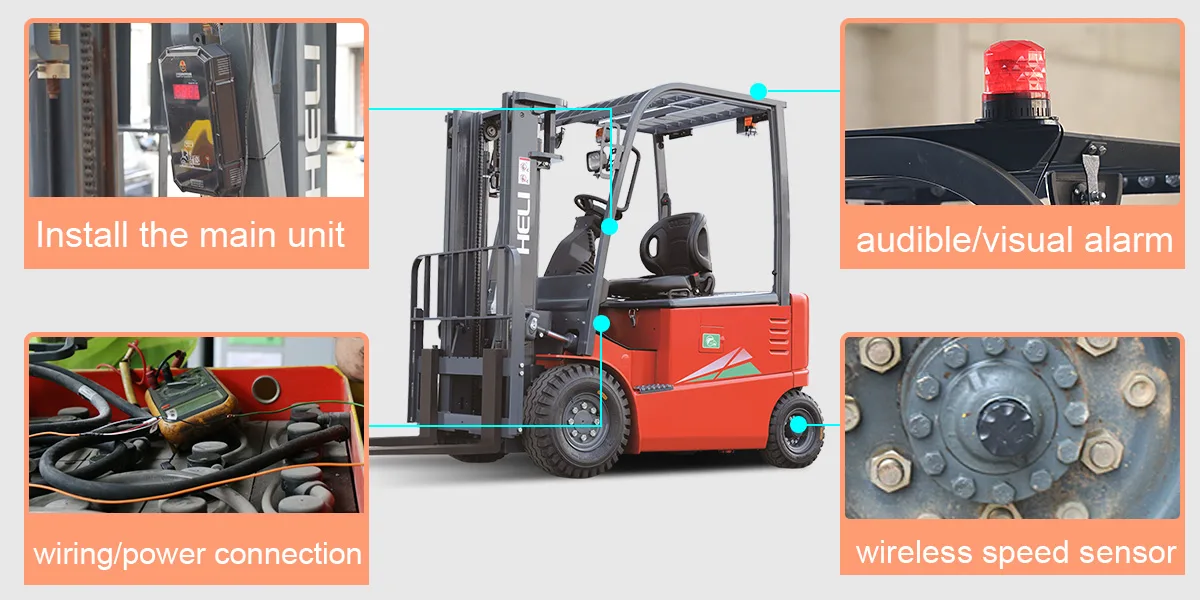

A: The standard configuration includes the SF-102 host, audible and visual alarm, infrared remote control, wireless speed sensor, power cable, and installation kit. Throttle controllers, relay controllers, LED displays, and extension cables are optional components.
